Highly Configured 60KW Power CNC Plate 3 axes Automatic Punching Machine Hydraulic Punch Machine of Longitudinal Beams

Product purpose and characteristics:

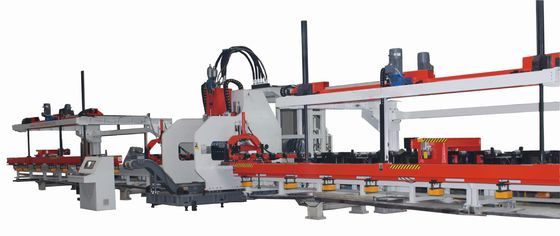

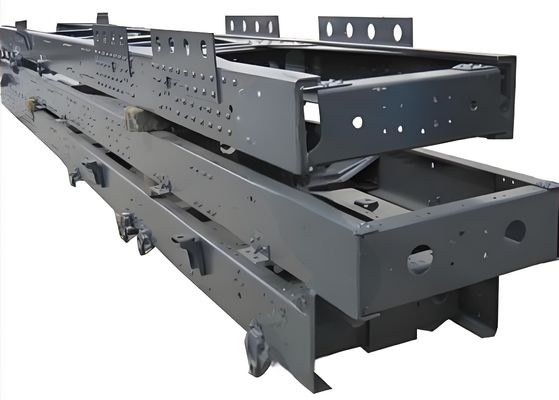

Automobile longitudinal beam flat plate CNC punching production line is a complete production line for automobile flat longitudinal beam punching. It is based on similar foreign and domestic equipment, according to the punching needs of various car frames at home and abroad, and integrates various product advantages. developed products. This production line can perfectly meet the flexible processing requirements of various frame longitudinal beams, and has the characteristics of stability and high efficiency.

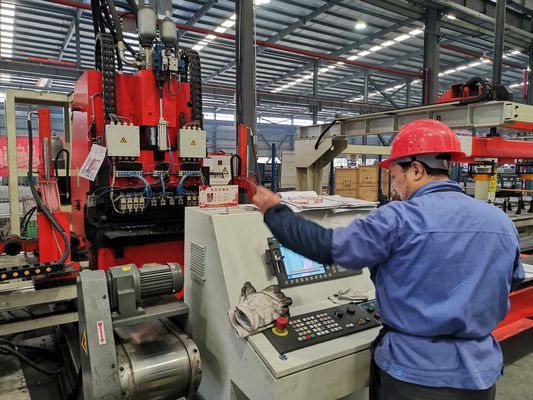

Composition of equipment

1. Feeding electric trolley, electric permanent magnet sucker automatic feeding device - 1 set;

2. Feeding electric trolley, electric permanent magnet sucker automatic feeding device - 1 set;

3. Loading and unloading supporting roller table - 1 set;

4. Sheet centering device - 5 sets;

5. Waste trolley - 1 set;

6. Main clamp and servo feeding device - 2 sets;

7. Auxiliary clamp device - 2 sets;

8. Punching machine (open type, 25 die positions) - 1 set;

9. Waste output device - 1 set;

10. Hydraulic system (oil cooling) - 1 set;

11. Pneumatic system - 1 set;

12. Lubrication system - 1 set;

13. Electrical control system - 1 set;

14. Automatic programming program - 1 set;

15. Convex and concave molds - 1 set;

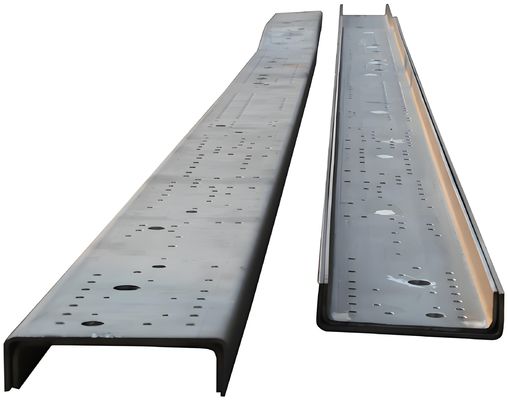

Main parameters of processing longitudinal beams:

1. Processing material data:

Plate thickness mm: 4--9

Material tensile strength (Mpa): Max.750

Workpiece length (mm): 4000-12000

Piece width (mm): 250-600

Workpiece camber (mm): ≤7/12M

Workpiece roughness X(mm): ≤8/1M ≤20/12M

Workpiece roughness Y(mm): ≤5mm

2. Equipment performance parameters and main technical indicators table

Nominal force 120 tons

Machine stroke X: 12000mm

Machine stroke Y: 600mm

Feeding speed X: 50m/min

Feeding speed Y: 30m/min

Hole pitch accuracy X: ±0.25mm/200mm

                                     ±0.35mm/400mm

                                     ±0.50mm/12000mm

Hole pitch accuracy Y (mm) ±0.3

Diagonal accuracy of rectangular grouped holes: ±0.4 mm/300 mm

Modules: 25

Max. machining aperture (mm) Φ60 (within the nominal force range of the machine tool)

Number of molds: 1 set

3. Data required for programming:

Material strength, material thickness; Stringer electronic drawing file (in a format recognizable by automatic programming);

The main technical parameters of the production line
