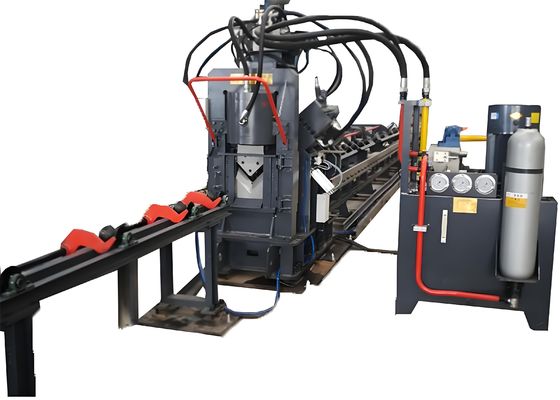

High Precision CNC Angle Lron Punching Marking And Shearing Line For Solar Mounting Aystem Manufacturing

Fully automatic CNC Angle steel punching marking and wire cutting integrated machin

Applicable Industry:

The machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry.


Specifications:

Product Composition:

ThiThis machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.



Product Feature:

1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2. There are three sets of punch and die on each side which can install three kinds of punches with different diameters. Three sets of moulds can move altogether controlled by PLC to change the punching back mark.
3. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.






Our dedicated equipment helps your transmission tower production line efficiently process large and high-strength trough materials. This solution optimizes the manufacturing process of key components from the tower body to the support, significantly enhancing assembly efficiency, connection reliability and the durability of the overall structure under extreme working conditions. Your reliable partner in building resilient projects.
